Channel Letters

Create a bold, professional storefront with custom LED Channel Letters. Our signs are UL Listed, illuminated with energy-efficient LEDs, and shipped ready for installation with wiring diagrams and mounting patterns included.

Perfect for retail stores, restaurants, offices, shopping centers, and commercial buildings.

Features

• Fully customized channel letters
• Energy-efficient LED illumination
• UL Listed for outdoor installation*
• Ready to install (excluding raceway)
• Installation pattern & wiring diagram included
• 5-Year Warranty
• Durable weather-resistant construction

*Raceway not UL Listed.

Lighting Options

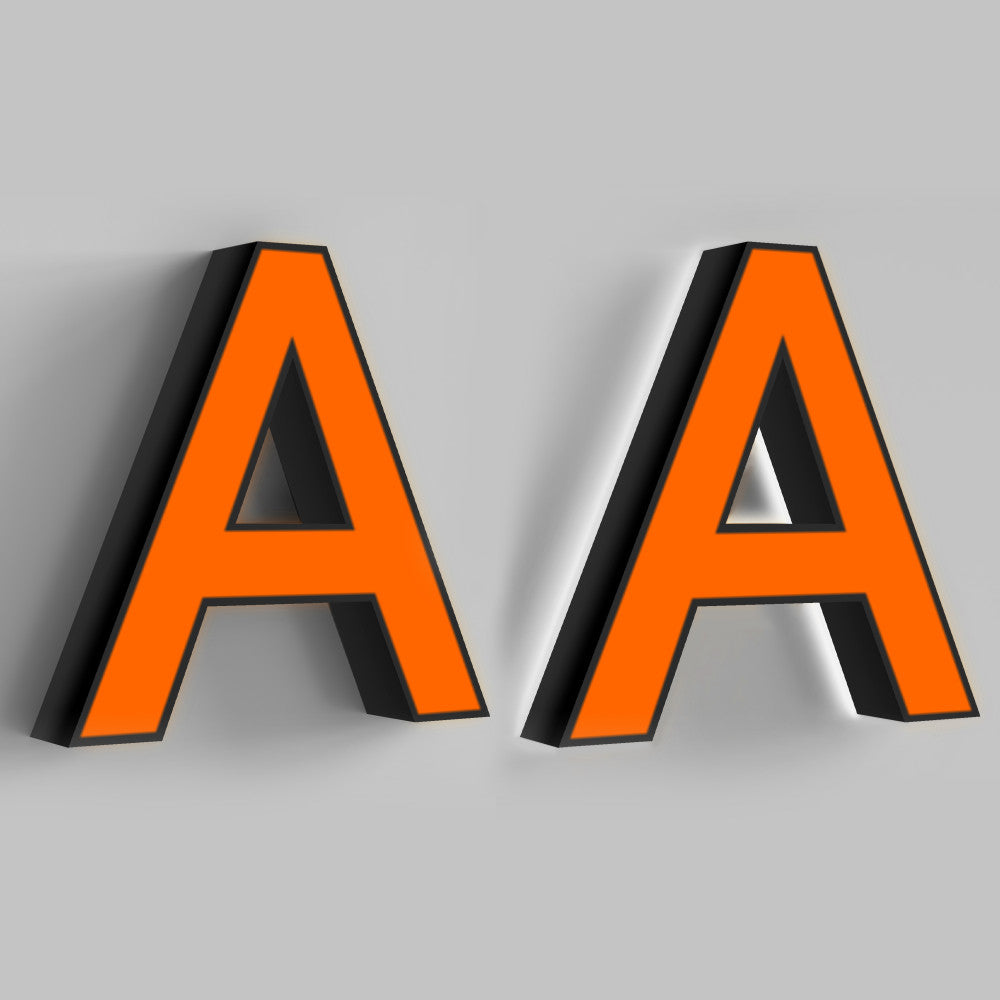

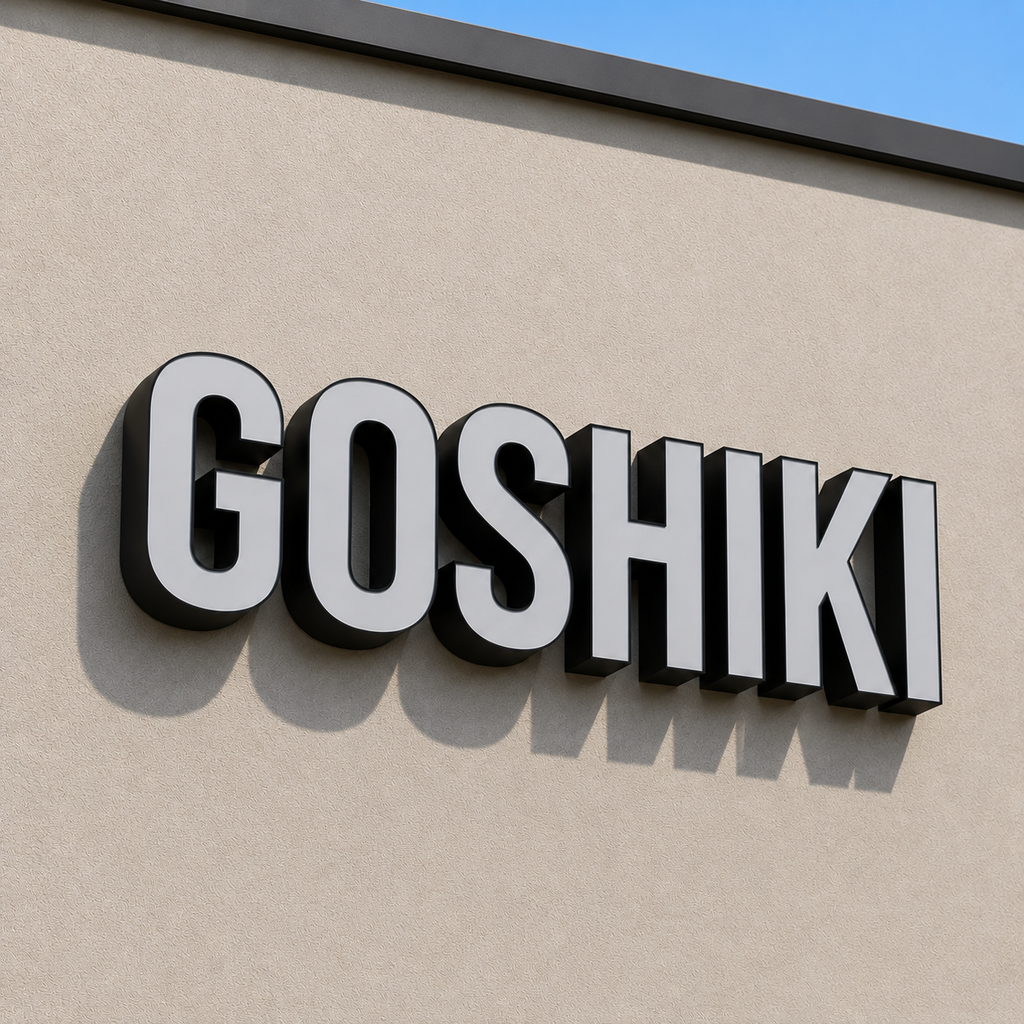

Front Lit

LED illumination shines through the acrylic face for a bright, classic appearance.

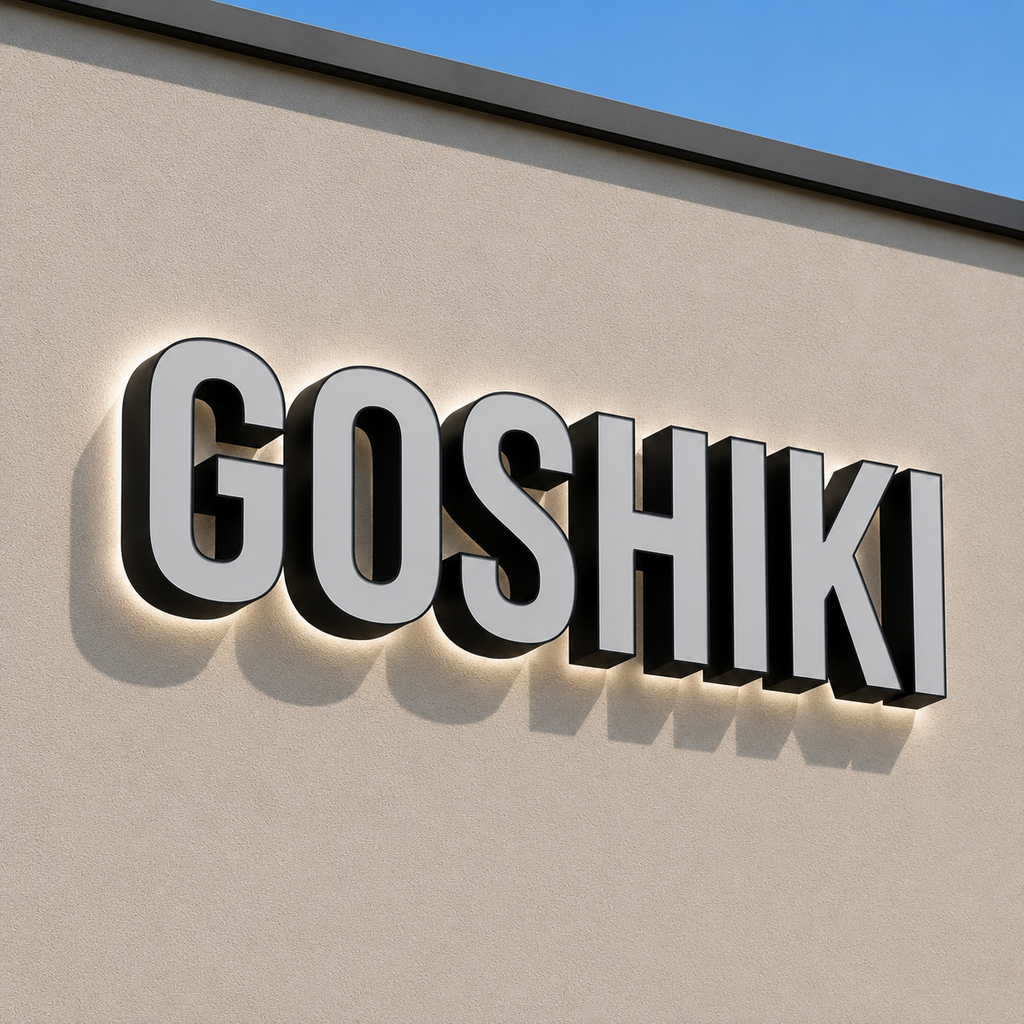

Front & Back Lit (Halo Lit)

Illuminates both the acrylic face and the back of the letters, creating a premium halo lighting effect.

Material Specifications

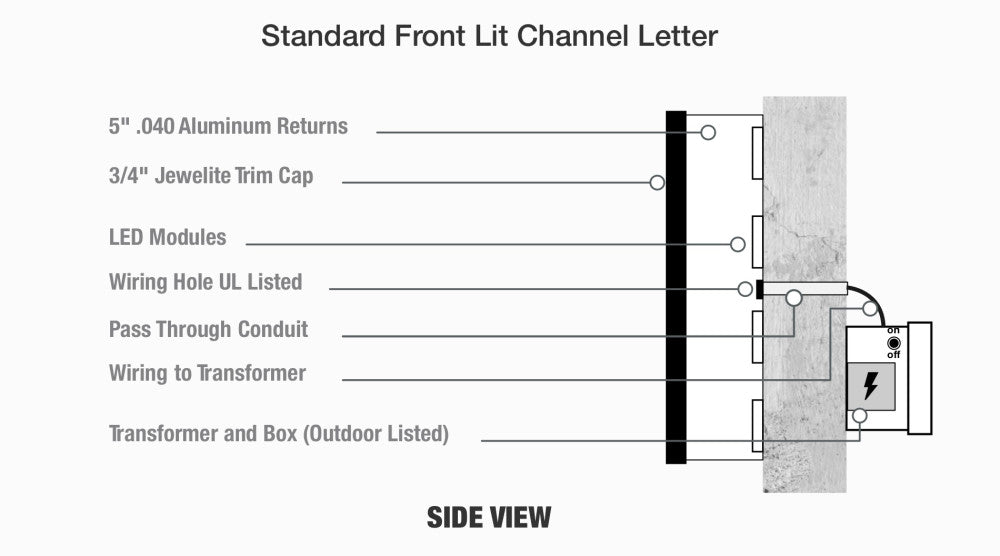

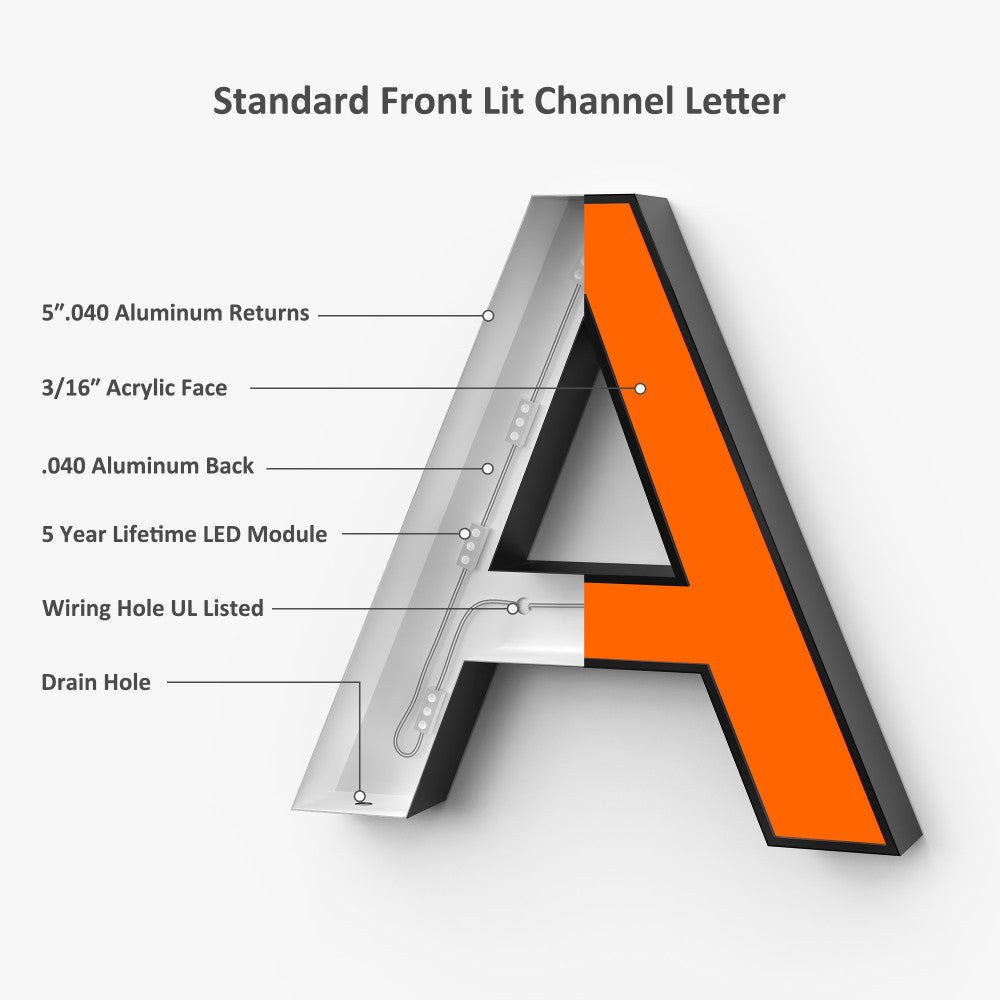

Face

• 3/16" Acrylic Face
• Acrylite®, Chemcast®, or Palsun® Acrylic

Trim Cap

• 3/4" or 1" Jewelite Trim Cap

Returns (Sides)

• 3" or 5"
• .040" High-Reflective Aluminum

Vinyl (Optional)

Available when custom face colors are required.

• 3M™ 3630 Translucent
• 3M™ 3635 Day/Night
• 3M™ Blockout Vinyl
• 3M™ IJ8150 Digital Print Vinyl

LED Lighting

• High-efficiency LED modules
• 160° beam angle
• IP67 waterproof
• 9000K–10500K
• 0.7W & 1.2W modules
• 5-Year Warranty

Power Supply

• 12V / 60W Constant Voltage Power Supply
• IP67 Rated
• Includes 3 ft power cord
• Transformer box available

For dry locations only.

Raceway (Optional)

Raceway mounting is available for installations where wall penetration is not preferred.

Features

• Height: 5.5"
• Depth: 3.5"
• Custom lengths from 10"–46"
• Longer raceways are assembled using multiple sections

Includes:

• Raceway base
• Raceway cover
• End caps
• Connection plates
• Mounting brackets
• Self-tapping screws

Channel letters are not pre-installed on the raceway. Mounting and wiring holes must be drilled during installation.

What's Included

• Custom LED Channel Letters
• Installation Pattern
• Wiring Diagram
• Power Supplies
• 3 ft Power Cord

Warranty

5-Year Limited Warranty

Perfect For

• Storefront Signs
• Restaurants
• Shopping Centers
• Office Buildings
• Retail Stores
• Medical Offices
• Hotels
• Commercial Buildings

Frequently Asked Questions

Are the channel letters ready to install?

Yes. Each order includes an installation pattern and wiring diagram. Installation accessories are not included.

Can I choose different lighting styles?

Yes. Choose from:

• Front Lit
• Front & Back Lit (Halo Lit)

Can I customize the colors?

Yes. Acrylic faces, trim caps, returns, and translucent vinyl options are available to match your branding.
