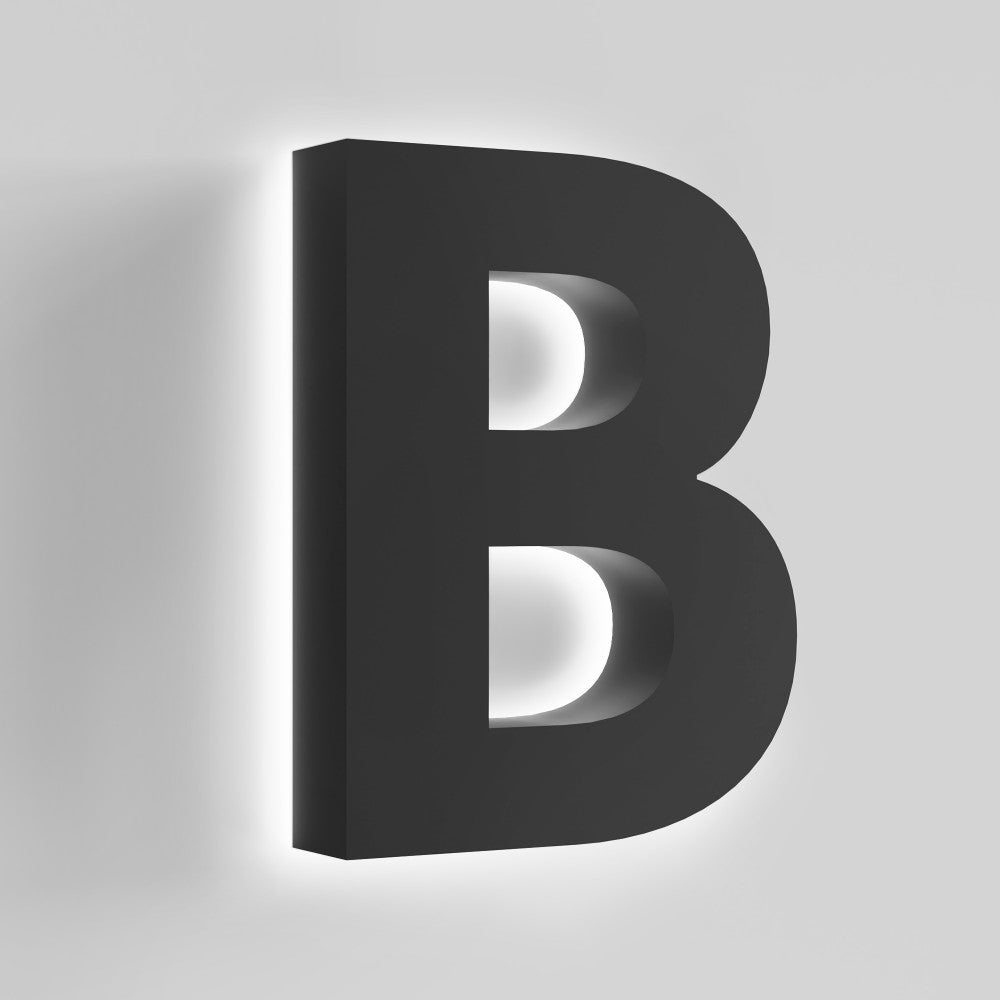

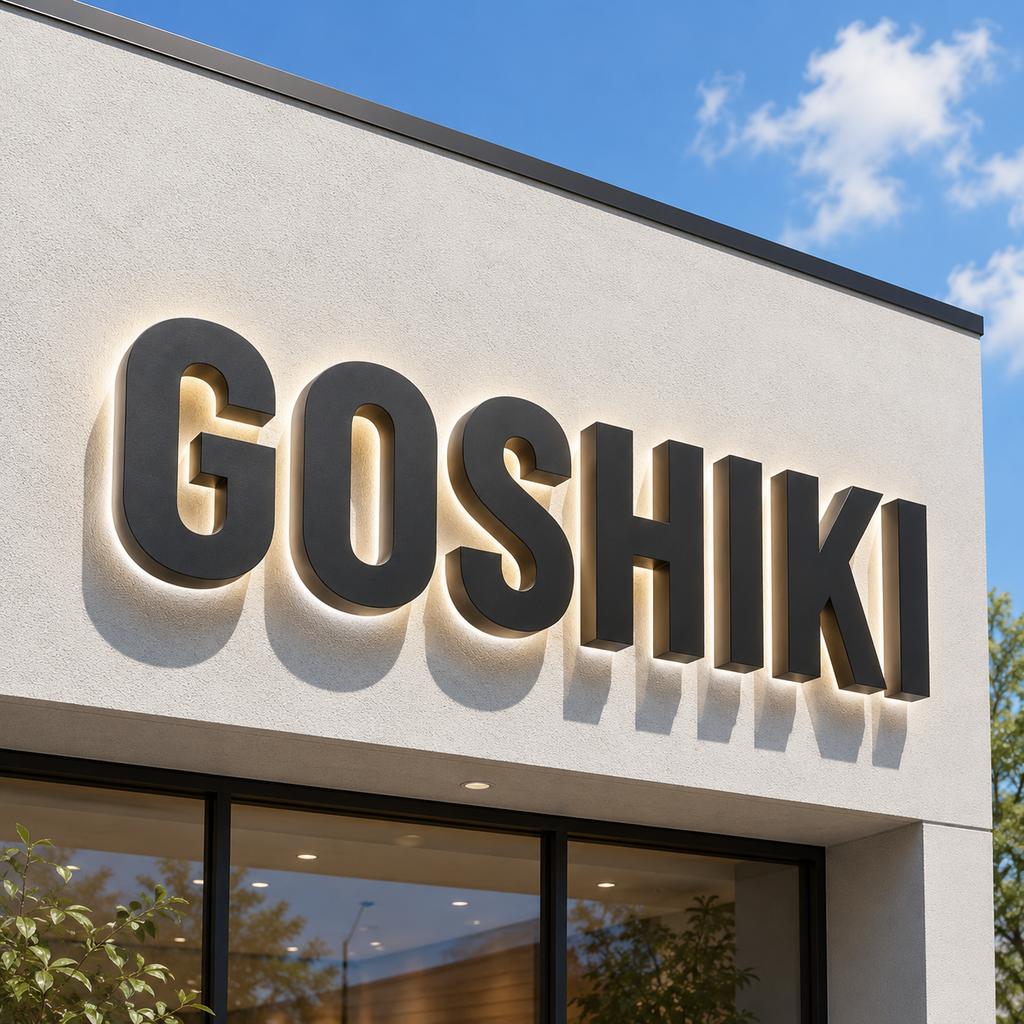

Halo / Reverse Lit Channel Letters

Create a premium, modern storefront with Halo (Reverse Lit) Channel Letters. These dimensional stainless steel letters feature hidden LED illumination that shines from the back, creating an elegant halo glow on the mounting surface.

Ideal for restaurants, retail stores, offices, hotels, luxury brands, and commercial buildings.

Features

• Premium stainless steel construction
• Elegant halo (reverse) LED illumination
• Available in over 35 colors
• UL Listed for outdoor installation*
• Ready to install (excluding raceway)
• Installation pattern & wiring diagram included
• Weather-resistant construction
• 5-Year Warranty

*Raceway not UL Listed.

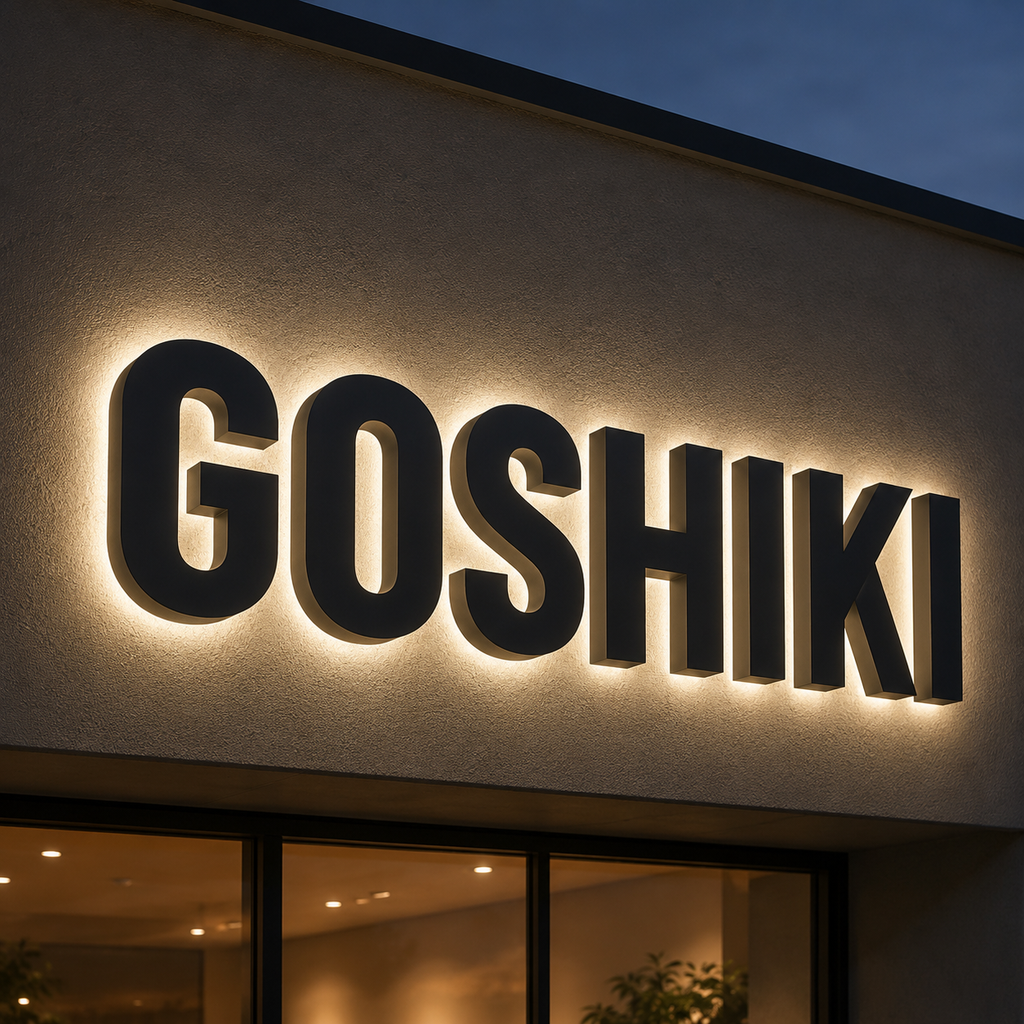

How Halo Lighting Works

Unlike standard front-lit channel letters, Reverse Lit Channel Letters use a solid stainless steel face with a clear Lexan back. The LED light shines through the back and reflects onto the wall, creating a soft halo effect around each letter.

Material Specifications

Face

• 0.8 mm or 1.0 mm Stainless Steel
• Over 35 color options available

Returns (Sides)

• 2" or 3"
• 0.8 mm or 1.0 mm Stainless Steel
• Matching face color

Back

• 1/8" Clear Lexan

LED Lighting

• High-efficiency LED modules
• 160° beam angle
• IP67 waterproof
• 10000K–12000K
• 0.7W & 1.2W LED modules
• 5-Year Warranty

Power Supply

• 12V / 60W Constant Voltage Power Supply
• IP67 Rated
• Includes transformer
• Transformer box available

For dry locations only.

Raceway (Optional)

Raceway mounting is available when wall penetration is not preferred.

Specifications

• Height: 5.5"
• Depth: 3.5"
• Custom lengths from 10"–46"
• Multiple sections available for longer installations

Includes:

• Raceway base
• Raceway cover
• End caps
• Connection plates
• Mounting brackets
• Self-tapping screws

Mounting and wiring holes are not pre-drilled on the raceway. Channel letters are shipped separately and must be installed onto the raceway during installation.

What's Included

• Custom Halo / Reverse Lit Channel Letters
• Installation Pattern
• Wiring Diagram
• LED Modules
• Power Supply

Warranty

5-Year Limited Warranty

Perfect For

• Restaurants
• Retail Stores
• Hotels
• Offices
• Shopping Centers
• Luxury Brands
• Reception Signs
• Commercial Buildings

Frequently Asked Questions

What's the difference between Front Lit and Reverse Lit channel letters?

Front Lit letters illuminate through the acrylic face for maximum visibility.

Reverse Lit (Halo Lit) letters illuminate from the back, creating a soft halo glow around the letters for a premium architectural appearance.

Are the letters ready to install?

Yes. Every order includes an installation pattern and wiring diagram. Installation accessories are not included.

Can I customize the color?

Yes. Choose from 35+ stainless steel finish options to match your brand.
